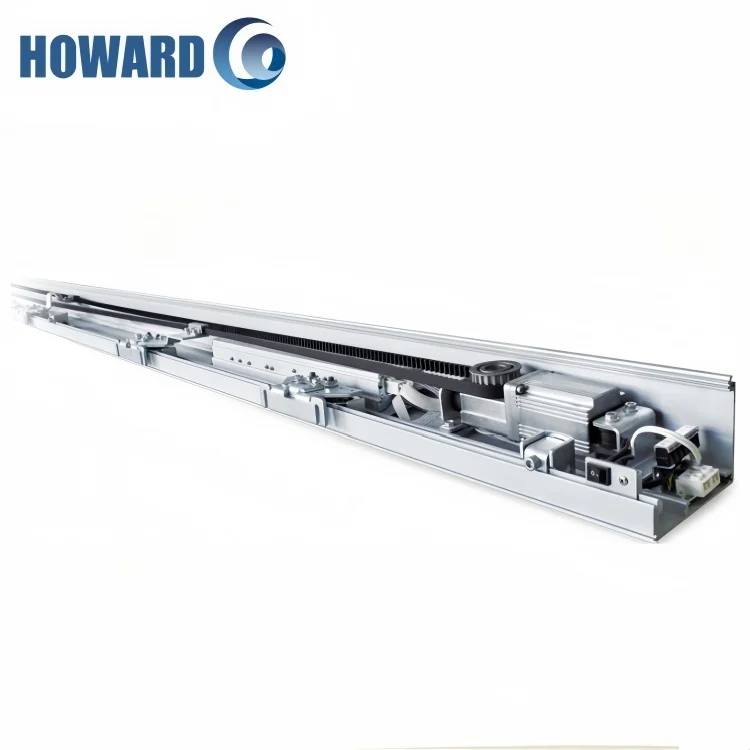

Sliding Door Operator

Input Voltage: 220V

Rated Power: 1200W

Rated Pushing Force: 2000KG

Gate speed: 12m/min

Limit switch type: Magnetic/Spring limit switch

Introduction

Product Description

AC ROLLING DOOR MOTOR.jpg

Product Name	Sliding Door Operator
Input Voltage	220V
Rated Power	1200W
Rated Pushing Force	2000KG
Gate speed	12m/min
Limit switch type	Magnetic/Spring limit switch
Output Torque	45N.m
Working Temperature	-45 ~ +55 ℃
OEM	Acceptable
Product Features	1. fast and easy installation 2. providing independent adjustment of force and speed 3. electronic board with 32-bit microprocessor 4. two trolleys per leaf with large diameter wheels 5. Adjustable opening and closing speeds. 6. Nylon reinforced belt for quiet smooth operation. 7. Brushless no-maintenance DC gear motor. 8. door weight: 150kgs/per door max 9. door width=700-1300mm 10. opening speed: 15-50cm/s 11.closing speed: 15-50cm/s 12. Selectable reduced door opening width.

Sliding door operator.jpg sliding door operator 2.jpg

Product Description

Company Information

ZHANGZHOU HOWARD TRADING CO., LTD. (the predecessor was Zhangzhou Haohua Electrical Co.,Ltd), the company is the professional high-tech of roling door motor integrating RD, production,sales and service.
Established in 2003, covering an area of more than 8000 square meters. Haohua's main product range cover rolling door motor, roller shutter, 4-8 inch rolling shaft, control system and relevant accessories.Adhering to the "'sustainable development, people-oriented" business philosophy, With complete quality management system to the pursuit of quality objectives, R&D team also makes innovation in techniques based on market demands, thoughtful after-sales service to win the favor of the user.

AS "the Member unit of the China Construction Metal Structure Association", "Member of the Standing Committee of China Construction Automatic Door, Sectional Garage Door Standard Commitee”, "Zhangzhou Electronic doors& windows association vice president unit", "Senate editor-national indus-trial standard-rolling door motor", we have rich experience in rolling door motor production.
